My Zumo 2040 Arduino Library

Robotics and electronics discussion Share your projects
1

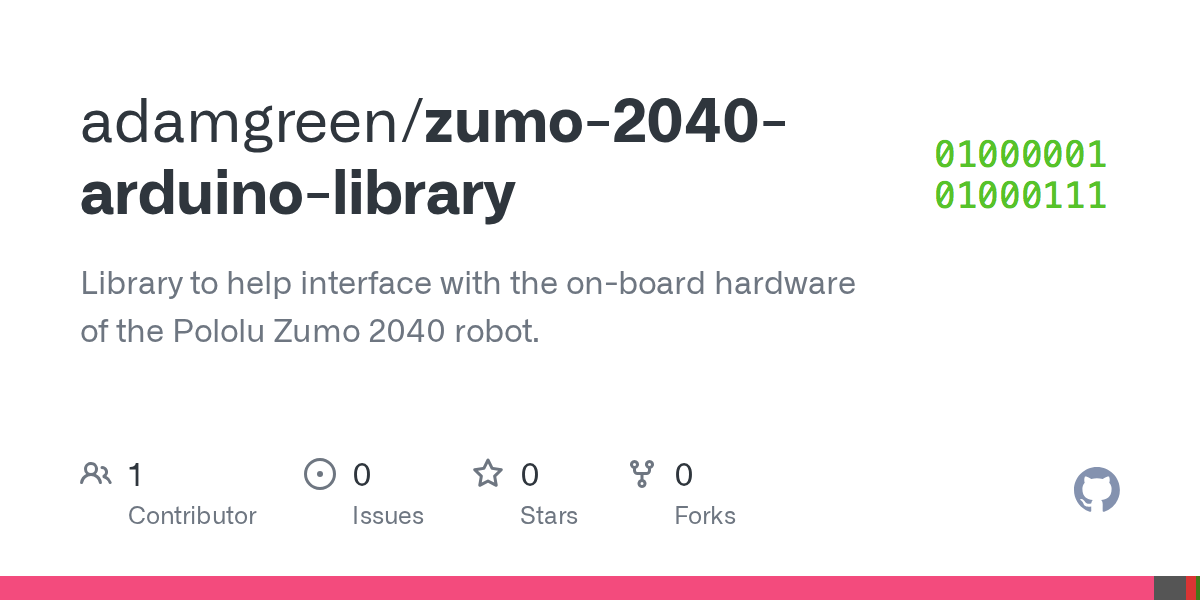

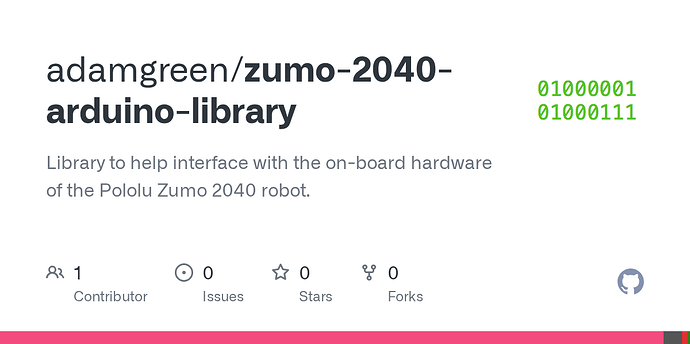

I recently ported Pololu’s Zumo 32U4 Arduino Library to the Zumo 2040. The initial Unofficial RP2040 port is now complete and version 0.1.0 can be found in the following repository on GitHub:

It includes all of the functionality found in the 32U4 version with the addition of support for the addressable RGB LEDs found on the Zumo 2040. The list of supported classes/functions includes:

  • PololuZumo2040::ButtonA
  • PololuZumo2040::ButtonB
  • PololuZumo2040::ButtonC
  • PololuZumo2040::Buzzer
  • PololuZumo2040::Encoders
  • PololuZumo2040::OLED
  • PololuZumo2040::Motors
  • PololuZumo2040::LineSensors
  • PololuZumo2040::ProximitySensors
  • PololuZumo2040::IMU
  • PololuZumo2040::RGBLEDs
  • PololuZumo2040::ledYellow()
  • PololuZumo2040::readBatteryMillivolts()

Here is an excerpt of Pololu’s BorderDetect.ino example ported to the Zumo 2040:

#include <Zumo2040.h>

#define QTR_THRESHOLD     300

#define REVERSE_SPEED     200
#define TURN_SPEED        200
#define FORWARD_SPEED     200
#define REVERSE_DURATION  200
#define TURN_DURATION     300

OLED display;
ButtonA buttonA;
Buzzer buzzer;
Motors motors;
LineSensors lineSensors;

void waitForButtonAndCountDown()
{
  ledYellow(1);
  display.clear();
  display.print("Press A");

  buttonA.waitForButton();

  ledYellow(0);
  display.clear();

  // Play audible countdown.
  for (int i = 0; i < 3; i++)
  {
    display.gotoXY(3, 0);
    display.print(3-i);
    buzzer.playNote(NOTE_G(3), 200, 15);
    delay(1000);
  }
  display.gotoXY(0, 0);
  display.print("   GO!  ");
  buzzer.playNote(NOTE_G(4), 500, 15);
}

void setup()
{
  waitForButtonAndCountDown();
}

void loop()
{
  if (buttonA.isPressed())
  {
    // If button is pressed, stop and wait for another press to
    // go again.
    motors.setSpeeds(0, 0);
    buttonA.waitForRelease();
    waitForButtonAndCountDown();
  }

  lineSensors.read();

  if (lineSensors.rawSensorValues[0] < QTR_THRESHOLD)
  {
    // If leftmost sensor detects line, reverse and turn to the
    // right.
    motors.setSpeeds(-REVERSE_SPEED, -REVERSE_SPEED);
    delay(REVERSE_DURATION);
    motors.setSpeeds(TURN_SPEED, -TURN_SPEED);
    delay(TURN_DURATION);
    motors.setSpeeds(FORWARD_SPEED, FORWARD_SPEED);
  }
  else if (lineSensors.rawSensorValues[LINE_SENSOR_COUNT - 1] < QTR_THRESHOLD)
  {
    // If rightmost sensor detects line, reverse and turn to the
    // left.
    motors.setSpeeds(-REVERSE_SPEED, -REVERSE_SPEED);
    delay(REVERSE_DURATION);
    motors.setSpeeds(-TURN_SPEED, TURN_SPEED);
    delay(TURN_DURATION);
    motors.setSpeeds(FORWARD_SPEED, FORWARD_SPEED);
  }
  else
  {
    // Otherwise, go straight.
    motors.setSpeeds(FORWARD_SPEED, FORWARD_SPEED);
  }
}

If you happen to try it out, please let me know what issues you encounter so that I can try to fix them and further improve the library. Thanks ahead of time for any feedback you throw my way.

3 Likes
2

Thank you. Does this library support new versions like Arduino UNO R4, Arduino UNO Q etc.?

3

No, it is for the newer RP2040 based version of the Zumo robot. It contains code that is specific to that microprocessor such as using PIO for wheel encoders and line sensors.

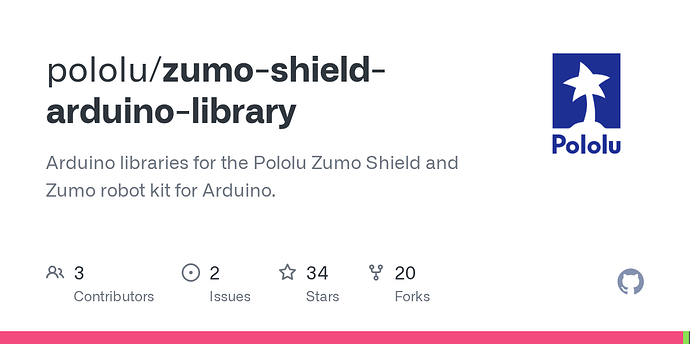

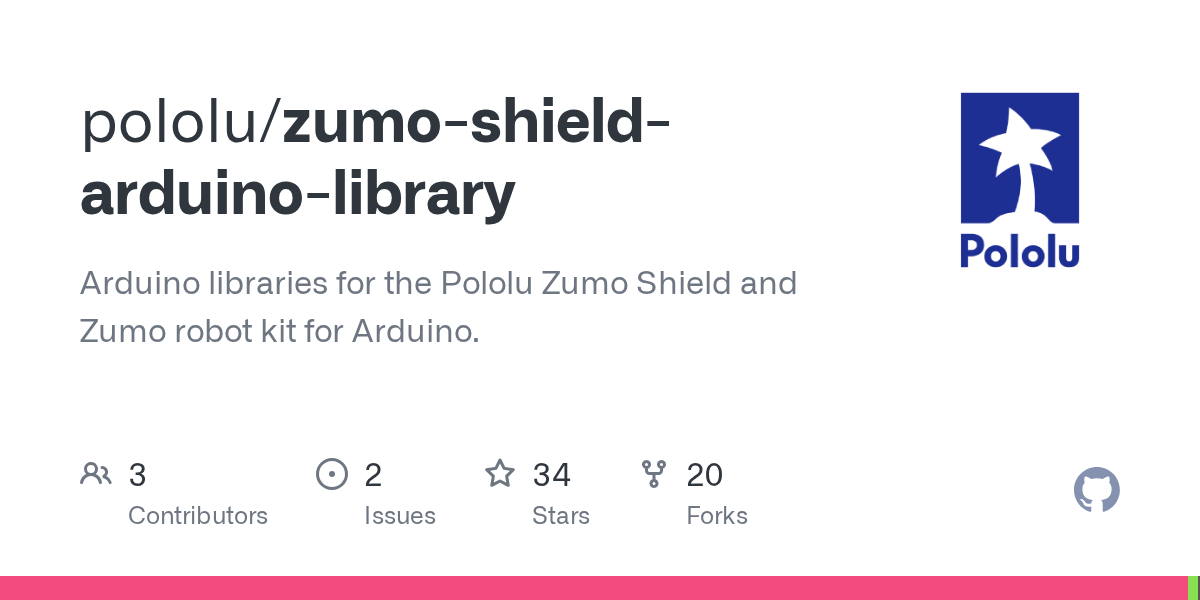

The only way you could use something like an Arduino UNO R4 with the Zumo would be if you used the Zumo Shield for Arduino. For that version of the Zumo, you would be better starting out with the Zumo Shield Arduino Library:

1 Like
